What is Environmental Testing?
Environmental testing evaluates how products perform under real-world environmental conditions. Specifically, we subject products to extreme temperatures, humidity, vibration, mechanical shock, and corrosive atmospheres to identify potential failures before market launch.
For example, automotive electronics must withstand temperature ranges from -40°C to 85°C while maintaining performance. Similarly, aerospace components face low atmospheric pressure at high altitudes combined with temperature extremes. Therefore, environmental testing is critical for ensuring product reliability and preventing costly field failures.
Our environmental testing lab in Bangalore conducts tests per international standards including JSS 55555,JSS5855,MIL-STD-810, IEC 60068, ISO 16750, and industry-specific requirements. As a result, manufacturers receive internationally recognized test reports for compliance verification and product validation.

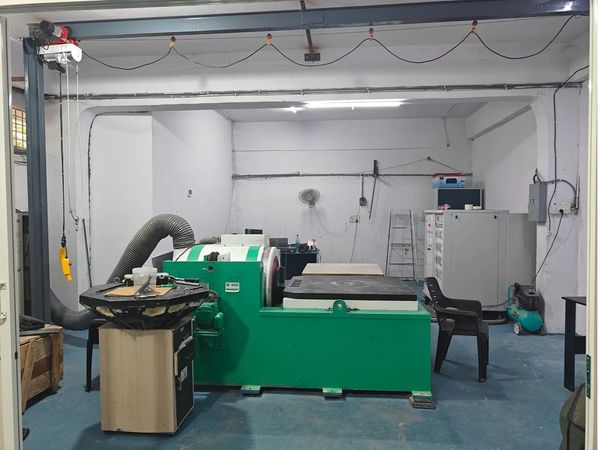

VIBRATION TEST
- Rated Force : 3500Kgf
- Frequency Range : 3Hz to 2500Hz
- Acceleration : up to 100g
Tests are performed
1.Sine vibration
2. Random Vibration
3. Sine on Random Vibration
4. Random on Random Vibration
5. Resonance Search Test
Test Methods
MIL-HDBK-2164
JSS 5855
JSS 55555: 2020
MIL-STD-810F/G/H
IS 9000(Part8)
IS 9001, PART XIII
MIL-STD-331D
MIL-STD-202G
MIL-STD-167-1A
AIS-156
IEC 60068-2-6
JSS 50101
QM 333
IEC 61373
JSS 0256
IEC 60062-2-80 (Part 2)
IEC 60068-2-64
THERMAL CYCLING TEST
- Number of Equipment : 05
Chamber Workspace : Chamber 1: 2650mm*2600mm*2700mm Chamber 2: 850mm*850mm*850mm Chamber 3: 1000mm*1000mm*1000mm Chamber 4: 450mm*550mm*950mm Chamber 6: 450mm*450mm*500mm
- Temperature Range : -65⁰C to +180⁰C
- Ramp Rate : 5⁰C/Min. & 10⁰C/Min.
Tests are performed
1. Low Temperature Test Storage Cum Operation (up to -65⁰C)
2. High Temperature Test Storage Cum Operation (up to +180⁰C )
3. Thermal Cycling (5⁰C/Min. & 10⁰C/Min)
4. Thermal Shock Test
5. Rapid Temperature Test
Test Methods
MIL-HDBK-2164
JSS 5855
JSS 55555: 2020
MIL-STD-810F/G/H
IS 9000(Part8)
IS 9001, PART XIII
MIL-STD-331D
MIL-STD-202G
MIL-STD-167-1A
AIS-156
IEC 60068-2-6
JSS 50101
QM 333
IEC 61373
JSS 0256
IEC 60062-2-80 (Part 2)
IEC 60068-2-64

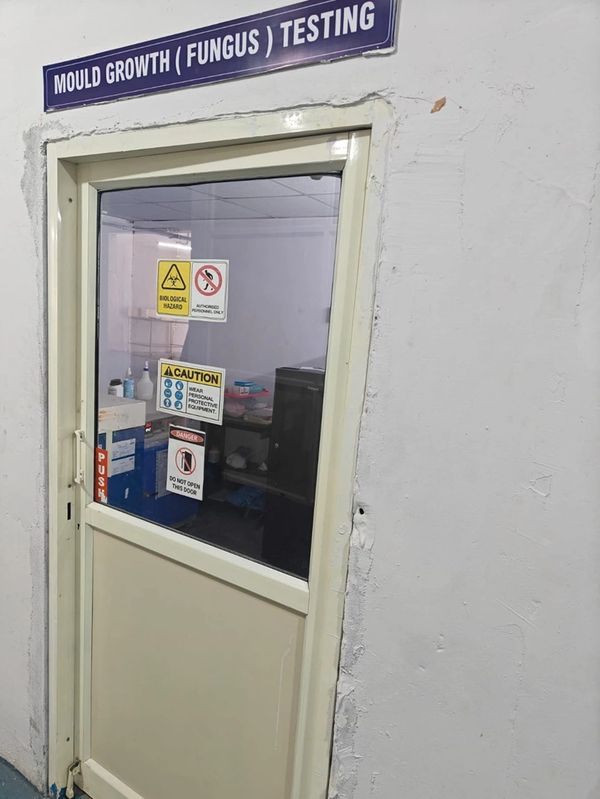

MOULD GROWTH TEST
- Number of Equipment : 03
- Chamber Workspace : Chamber 1: 500mm*600mm*700mm Chamber 2: 600mm*600mm*600mm Chamber 3: 1000mm*1000mm*900mm Chamber 4: 450mm*550mm*950mm
- Temperature Range : 20⁰C to +180⁰C
- Humidity Range : Up to 98%RH.
Tests are performed
1. Mould Growth
2. Fungus
Test Methods
JSS 5855
JSS 55555: 2020
MIL-STD-810F/G/H
IS 9000
IEC 60068-2-10
JSS 50101
JSS 0256

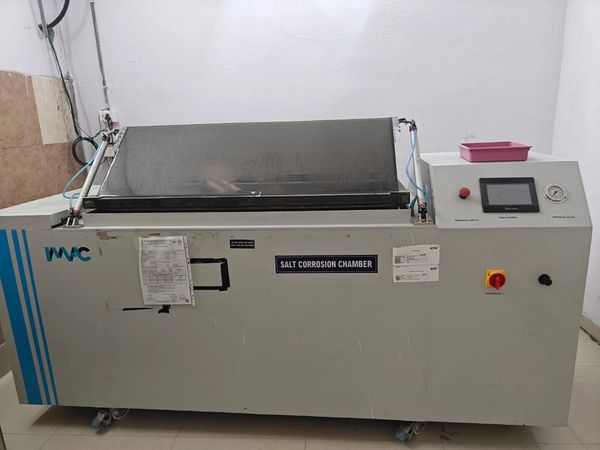

SALT CORROSION TEST (ACID TEST & ALKOLINE TEST)
- Number of Equipment : 01
- Chamber Workspace : Chamber 1: 900mm*1200mm*1100mm
- Temperature Range : 20⁰C to +80⁰C
- Humidity Range : Up to 98%RH.
Tests are performed
1. Salt Corrosion Test
2. Salt For Test
3. Salt spray Test
4. Saline Atmosphere Test
5. Salt Corrosion Test(ACID)
6. Salt Corrosion Test(ALKALINE)
Test Methods
JSS 5855
JSS 55555: 2020
MIL-STD-810F/G/H
IS 9000
IEC 60571
IEC 60068
QM 333
JSS 50101
JSS 0256
ASTM B-117

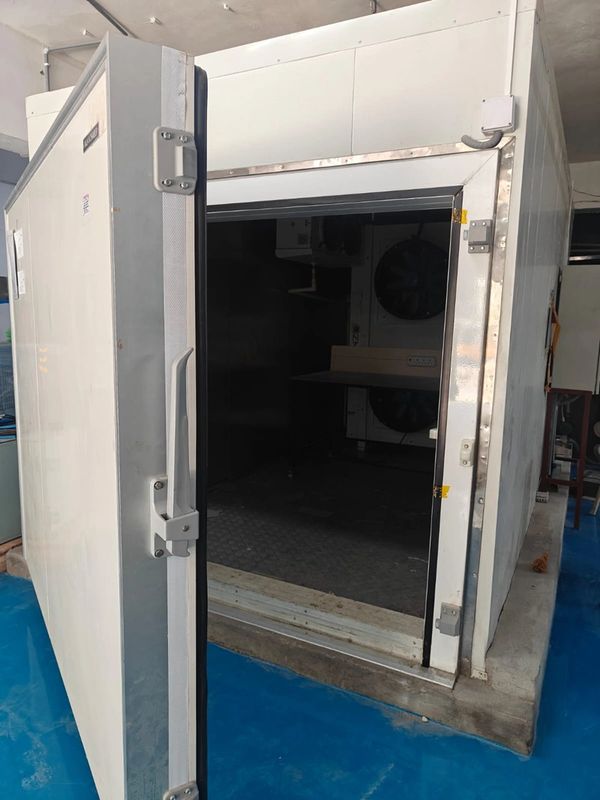

WALK-IN CHAMBER
- Number of Equipment : 01
- Chamber Workspace : Chamber 1: 2700mm*2600mm*2400mm
- Temperature Range : -50⁰C to +100⁰C
- Ramp Rate : 10⁰C/Min
- Humidity Range : Up to 98%RH.
Tests are performed
1. High Temperature Test
2. Low Temperature Test
3. Thermal Cycling Test( 10⁰C/Min)
4. Damp Heat Test
5. Damp Heat Cyclic Test
6. Tropical Exposure Test
Test Methods
JSS 5855
MIL-HDBK-2164
JSS 55555: 2020
MIL-STD-810F/G/H
IS 9000
IEC 60571
IEC 60068
JSS 50101
JSS 0256
QM 333
